Advanced Materials

Plasmability Icemaker™
CVD Diamond Growth System

For Advanced Materials Applications:
Quantum, Electronics, Optics

Plasmability is now offering its IceMaker™ CVD diamond growth systems to select customers.

  • Unprecedented Growth: 10 mm thickness in a nonstop process.

  • Ultra-Stable Temperature Control: +/- 3°C for 800+ hours with no change of power, pressure, or chemistry.

  • Precise Impurity Control: Ultra-low leak rates for superior films <1 ppb nitrogen.

  • Advanced Automation: Flexible recipe control, fully automated operation from start to finish, automated data collection, remote access.

Standard Features:

  • Dual-Wavelength Pyrometer: Real-time temperature measurement.

  • Dual Optical Cameras: Monitor growth in real-time.

  • Comprehensive Data Logging: Built-in data and video collection and push-to SQL Server capability.

  • Ultra-Clean Gas Panel with Digital MFC's: Enables precise epitaxial growth.

  • High-Accuracy Pressure Control: Dual capacitance manometers and pressure controller.

  • Reliable Pumping: Efficient and clean performance with dry scroll pumps.

Optional Features:

  • Flexible Power Configurations: Choose 6 kW or 10 kW 2.45 GHz.

  • Chamber Flexibility: Single or dual chamber configurations.

  • Thermal Camera: Large area temperature measurements.

  • Customer-focused solutions: Customization of hardware and software.

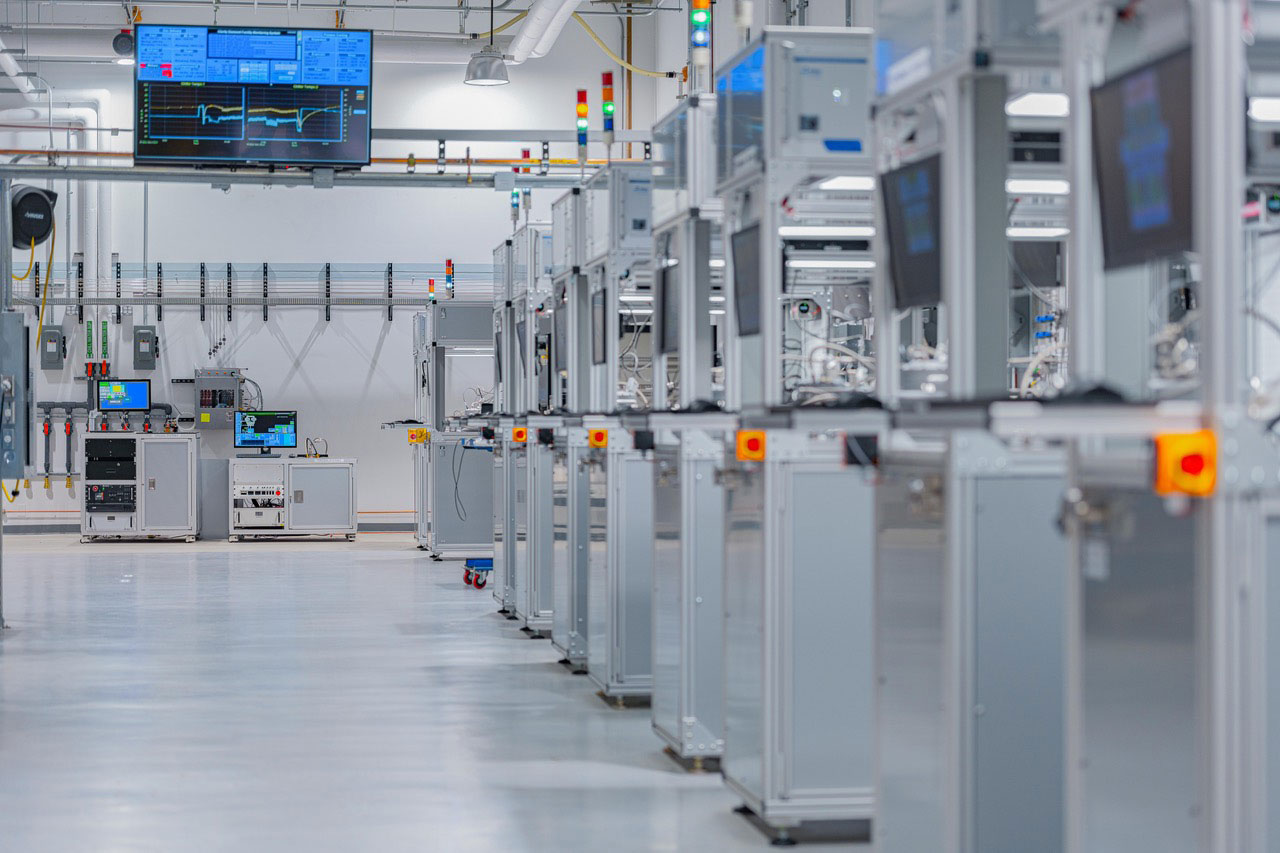

Our Facility

  • 10 dual chamber systems (10 kW each chamber).

  • 2 single chamber systems (10 kW each chamber).

  • 3 laser cutting systems for customer samples.

  • Able to supply production quantities or samples of diamond material to customers.

Full-service

  • US-based

  • Experienced team for installation, field-service and process support.

  • Continuous process advancements from our internal foundry will support the customer.

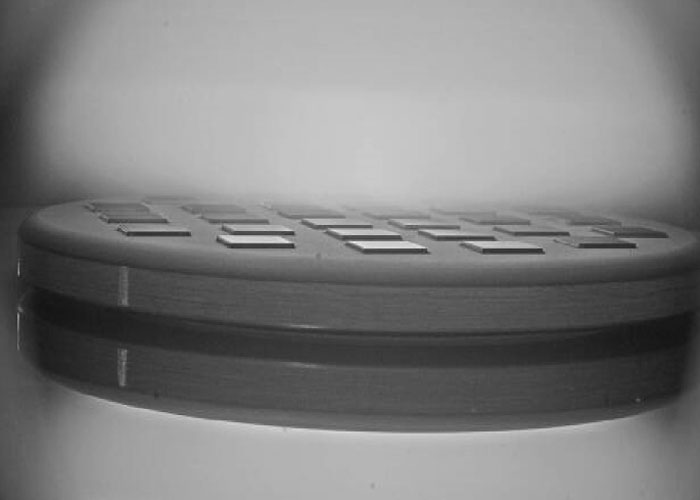

  • Dual 10kW IceMaker Configuration (right chamber shown). Picture taken with onboard cameras.

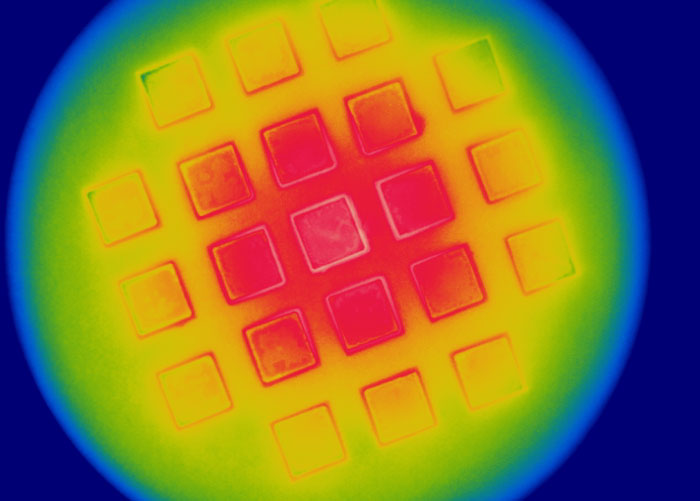

  • Optional thermal camera

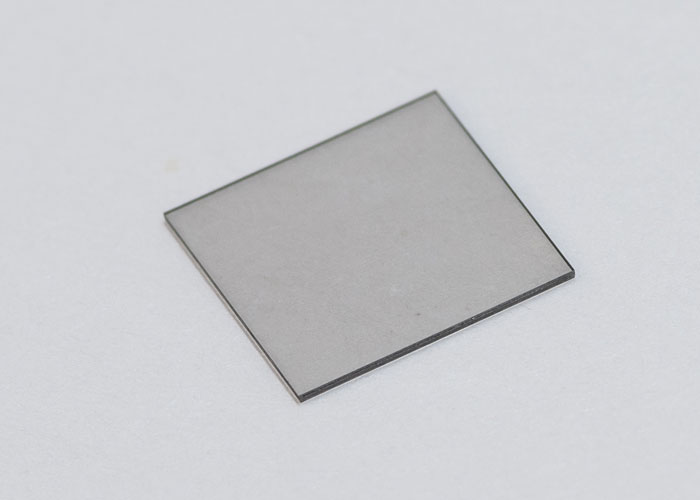

  • Single crystal sample <1 ppb of nitrogen

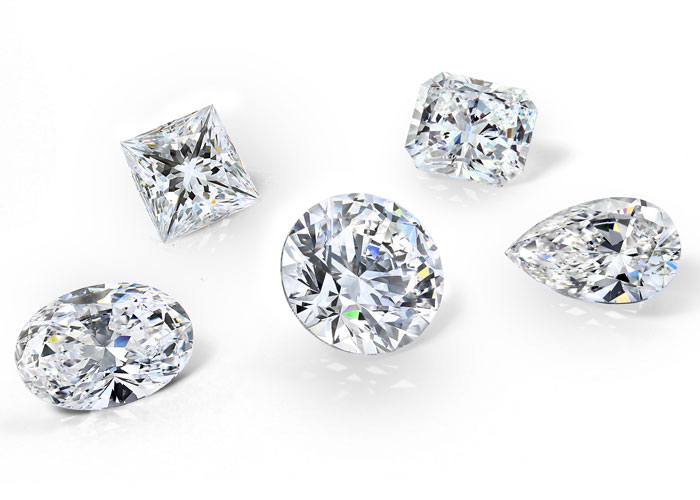

  • Examples of finished gems

Read more …Advanced Materials

Posted in Main Navigation.

Factory Solutions

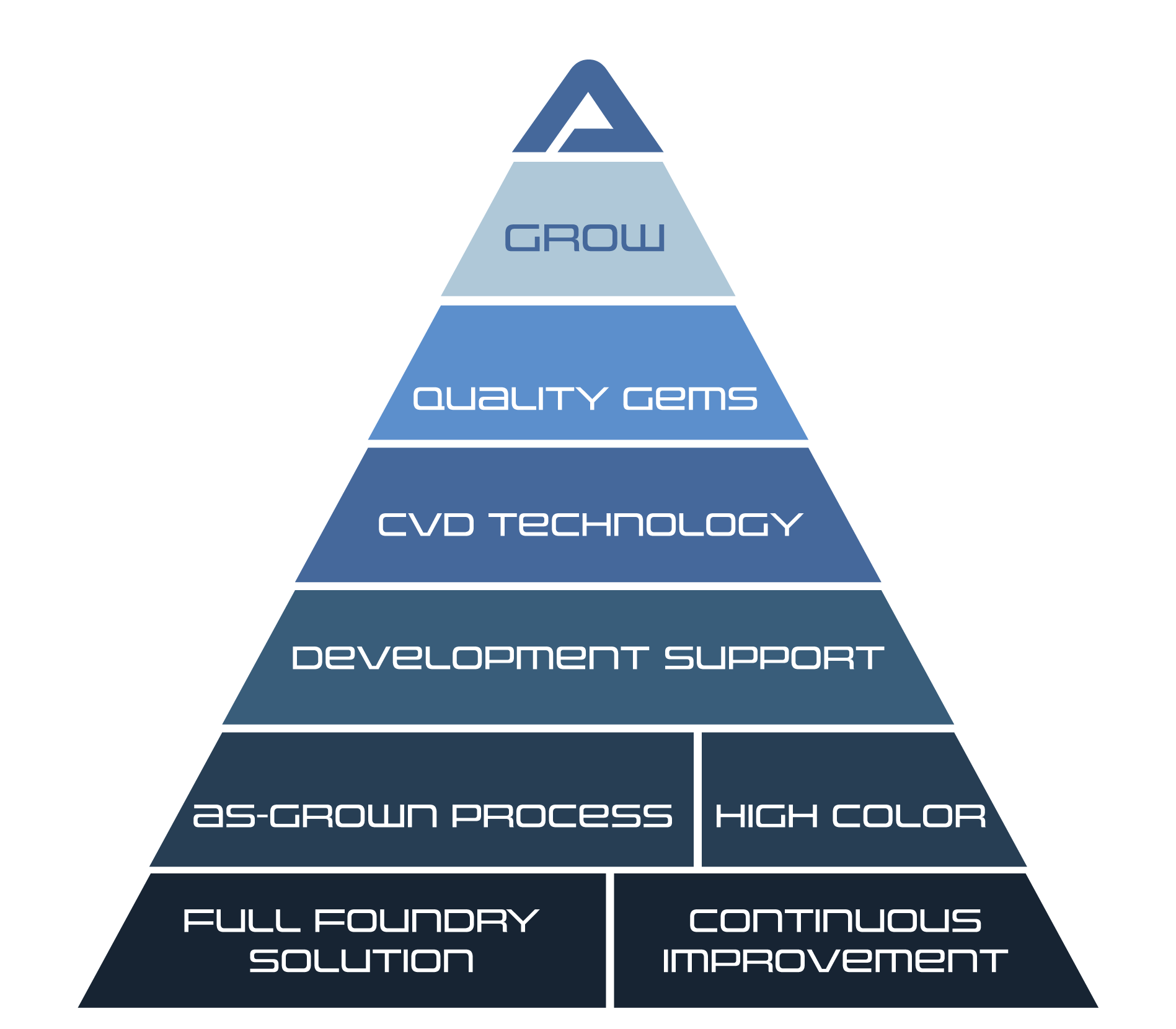

  • CVD Technology

    We use the latest CVD (Chemical Vapor Deposition) technology for growth of diamond material.

    Read more

  • Grow

    Our proposition allows investors to leverage our experience and transfer our knowledge in a very short time compared to traditional buy, try and develop cycles.

    Read more

  • As-Grown

    Our advanced CVD technology allows us to produce D-H color and VVS2 - VS2 clarity without the need for additional post-growth processing.

  • Full Foundry Solutions

    Plasmability delivers comprehensive solutions for lab-grown diamond producers. Our mission is to accelerate production line setup, time to market, and ROI, so you can get to market producing high quality lab-grown diamonds as rapidly and profitably as possible.

  • Continuous Improvement

    We've been innovators in CVD technology since 2012, and we continue to invest in R&D for the ongoing improvement of CVD systems.

  • Quality Gems

    In the hyper competitive lab-grown space, it's critical to demonstrate that you can produce consistently high-quality gems. Plasmability's combination of technology, engineering support, process design, and training deliver important competitive advantages in the efficient production of high quality gems.

  • Development Support

    From rapid initial deployment through ongoing process and technology improvements, Plasmabillity is your lab-grown diamond development support partner.

Foundry Solutions

Plasmability works with you to create and deliver full CVD diamond production capability.

Our solution includes our years of experience, live support at Clarity Diamond, and the development and ongoing improvement of CVD systems.

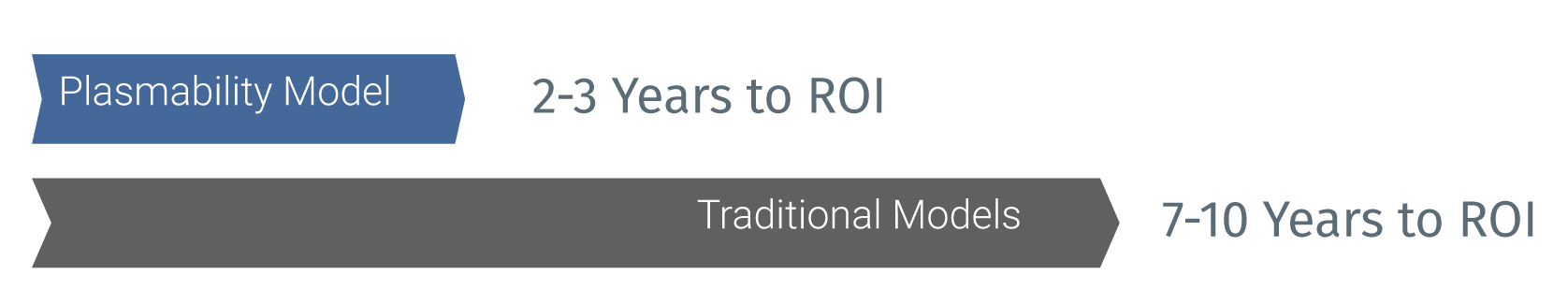

ROI

With Plasmability, your path to ROI is de-risked and accelerated.

Our proposition allows investors to leverage our experience and transfer our knowledge in a very short time compared to traditional buy, try and develop cycles.

Our proven high-yield Clarity Diamond manufaturing operation is the blueprint.

Contact Us

Materials

Plasmability's focus is on growing the highest quality materials for sellers looking to capitalize on the beauty, carat size and social benefits of CVD diamonds. Plasmability is a good fit for growers looking to produce high quality/high value diamonds.

CVD Technology and Hardware

We use the latest CVD (Chemical Vapor Deposition) technology for growth of diamond material. In the CVD technique, the high-quality diamond material is grown in a reactor where carbon-containing gases are activated using a plasma discharge. Our CVD equipment utilizes microwave power supply to generate a plasma discharge in a water-cooled vacuum chamber.

Our process and equipment control are key to the growth of high-quality, high-value diamond rough.

Our proprietary CVD diamond process is a unique model in the lab-grown diamond equipment industry. We don't just provide the hardware ... we provide superior hardware, an established start-up system, and the know-how and support you need to get to ROI quickly.

  • Demonstrated quality for gems and advanced materials.
  • Modelling of setup costs, output, profitability, and ROI.
  • CVD hardware, delivered in multiple-unit cells.
  • CVD process chemistries and best known methods (BKMs).
  • Recommendations for support equipment, energy, and facilities based on our extensive foundry experience.
  • Engineering support for installation, setup, training, maintenance, and upgrades.
  • Software support for ongoing development in process control and improvement.
  • Ongoing development of materials, processes and BKMs.

Long Term Partnership

We have committed financial and human resources to ensure ongoing process and software development and improvements, ensuring that Plasmability can deliver value both now and in the future.

Contact Us

Read more …Factory Solutions
